Air Casters - 16 ton

Air Casters - 16 ton Max Load:16 ton
Brand:LONGSHENG®
Warranty: 12 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Introduction of LHQD Air Casters- 16 ton:

1 LHQD 16 ton Air Casters can be combined according to the weight and volume of the heavy load.
2 LHQD 16 ton Air Casters require a higher ground, the ground can not have cracks or leaks place.
3 Particular useful for moving semiconductor device、LCD production equipments which need high stability and balance requirements
4 Powered by air and noiseless.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Model Capacity Quantity
of
Air
Cushion		 Size
of
Air Cushion		 Main
Material
of
Air Cushion		 Height
of
Air Cushion		 Main
Gas
Supply
Flow		 Pressure Main Pipe
Length		 Vice Pipe
Length		 Net
Weight
of
Each
Air Cushion
(T) (L×W×H,mm) (mm) (m3/ min) (kg/cm2) (m*qty) (m*qty) (kg)
LHQD-16-4 16 4 485×485×50 Aluminum
6061		 40 >3.5 7 30*1 6*4 13

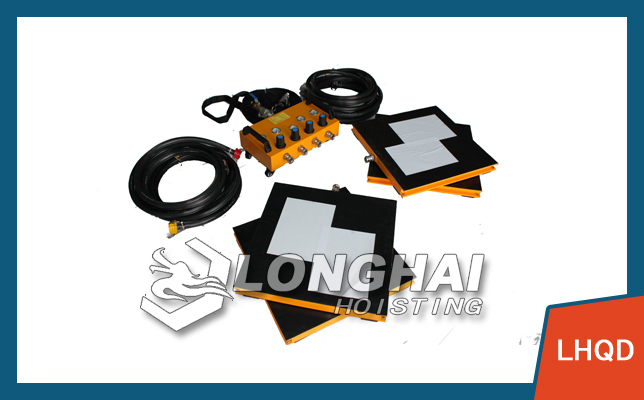

Our LHQD Air Casters:
air casters air skates
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

(Editor ：longhaihoist)
