Explosion-proof Electric Chain Hoist -EP

Explosion-proof Electric Chain Hoist Capacity:1-35 ton
Lifting Hight：3/9 m
Brand:LONGSHENG®
Warranty: 12 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Explosion-proof Electric Chain Hoist -EP

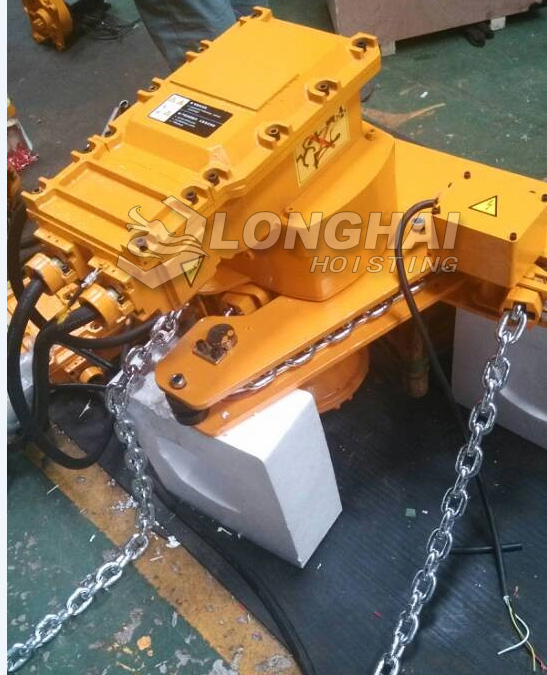

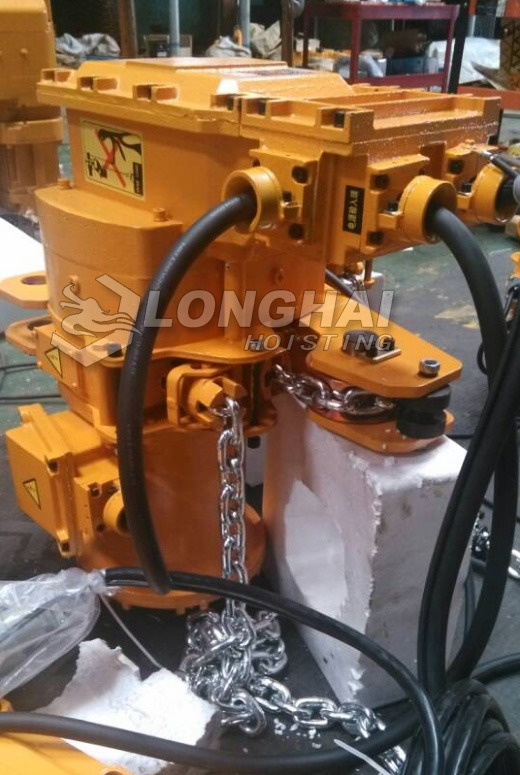

Explosion-proof Electric Chain Hoist
Low-headroom Explosion-proof Electric Chain Hoist could be customized

Low-headroom Explosion-proof Electric Chain Hoist Low-headroom Explosion-proof Electric Chain Hoist
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

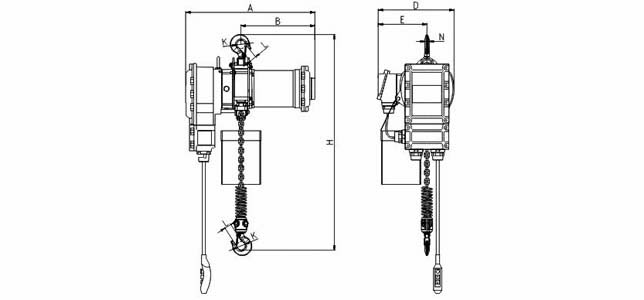

Model Capacity
(t)		 Technical Parameters/mm Spec.of load chain
H A B D E K L N M J Q
EP01-01 1 600 600 330 300 176 Φ40 31 24 / / / 7.1
EP02-02 2 750 600 330 300 230 Φ49 35 30 / / / 7.1
EP03-01 3 920 600 330 350 280 Φ59 42 35 / / / 7.1
EP03-02 3 845 675 325 430 265 Φ59 42 35 / / / 11.2
EP03-03 3 950 675 325 430 320 Φ59 42 35 / / / 10
EP05-02 5 1030 675 325 430 325 Φ60 45 43 / / / 11.2
EP7.5-03 7.5 1200 675 350 500 320 Φ90 70 50 / / / 11.2
EP10-04 10 1400 725 350 890 445 Φ90 70 50 / / / 11.2
EP15-06 15 1360 725 350 1030  / Φ110 80 85 88 Φ70 520 11.2
EP20-08 20 1250 725 350 1220  / Φ110 80 85 88 Φ70 / 11.2
EP25-10 25 1700 725 350 1315  / Φ140 100 95 96 Φ80 / 11.2
EP30-12 30 1640 915 458 1380  / Φ140 100 95 228 Φ90 / 11.2
EP35-16 35 1790 915 458 1600  / Φ200 140 135 235 Φ100 440 11.2

Warranty: 12 months of both Electrical Part and Mechanical Part
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
