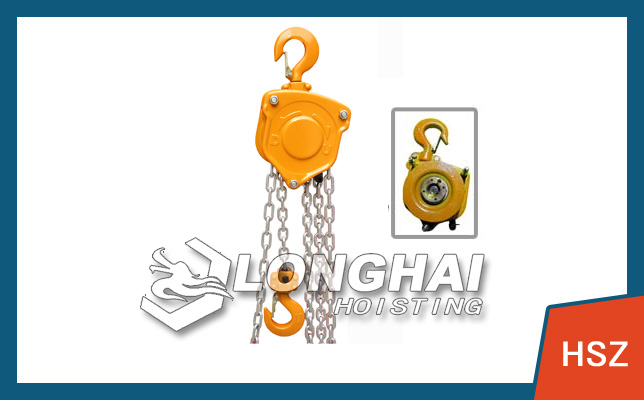

Anti-overload Chain Hoists -HSZ
Capacity:0.5-50 ton | |
Lifting Hight:3 m | |
Brand:LONGSHENG® | |
Warranty: 12 months |
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Anti-overload Chain Hoists -HSZ
If the load is more than 1.3 times of the capacity,the Anti-overload function will be activated,
can not lift the load upward,only to fall, so that we can prevent accidents due to overload.
1. Our chain block is with triangle shape which is hard and has compact structure.
2. The chain of our chain block adopts G80 alloy steel and the surface uses quench method
and carbon black treatment, so the chain has good toughness and tensile resistance.
and carbon black treatment, so the chain has good toughness and tensile resistance.
3 The hook of our chain block is hard and has good toughness.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ |
Model | HSZ-0.5V |
HSZ- 1V |
HSZ-1.5V |
HSZ- 2V |
HSZ- 3V |
HSZ- 5V |
HSZ-7.5V | HSZ-10V |
HSZ- 20V |
HSZ- 50V |
|
Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 7.5 | 10 | 20 | 50 | |
Lifting Height (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
Test Load(KN) | 6.3 | 12.5 | 18.8 | 25 | 37.5 | 75 | 94 | 125 | 250 | 625 | |
Rated pulling force(N) | 231 | 309 | 320 | 320 | 360 | 414 | 420 | 420 | 840 | 900 | |
Spec.of load chain(mm) | 5 | 6 | 7.1 | 8 | 7.1 | 9 | 10 | 10 | 10 | 22 | |
No. of load chain | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 4 | 8 | 10 | |
Net weight(kg) | 7 | 11 | 17 | 18.5 | 24 | 40 | 52 | 78 | 162 | 1085 | |
Weight of load chain(kg) | 1.5 | 1.8 | 2.1 | 2.3 | 4.2 | 4.6 | 7.3 | 9.8 | 19.6 | 50 |
