Stainless Steel Hand Winch with Automatic Braking -SSCDL
 |
Capacity:1200-2600 LBS |
| Brand:LONGSHENG® | |
| Warranty: 3 months |
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

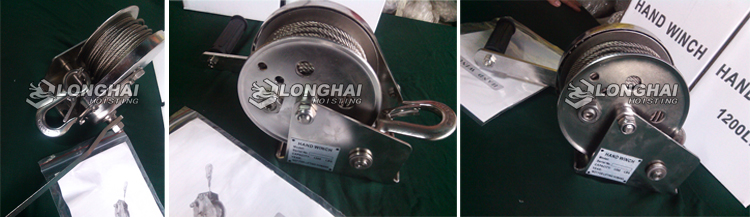

Stainless Steel Hand Winch with Automatic Braking -SSCDL
Made of stainless steel,small size,light weight,simple and flexible.With automatic braking means,with the help of the
Made of stainless steel,small size,light weight,simple and flexible.With automatic braking means,with the help of the
gravity, the dual brake system is automatically turned on,self-locking lifting,higher safety factor.
Widely used in the field(no power supply environment)fire-fighting,rescue,underground,vehicle
hoists,crane truck docks,hydrology,marine,trees,lifting,pulling and other operations,security,
and easy to control.
hoists,crane truck docks,hydrology,marine,trees,lifting,pulling and other operations,security,
and easy to control.
 |
| Model |
Capacity (LBS) |
Spec.of load wire (фmm) |
Rope capacity (m) |
Size(mm) |
Net Weight (kg) |
|||||
| A | B | C | D | H | L | |||||
| SSCDL-1200 | 1200 | 4 | 35 | 88 | 50 | 45 | 136 | 155 | 138 | 3.8 |
| SSCDL-1800 | 1800 | 5 | 50 | 107 | 60 | 50 | 181 | 198 | 193 | 8 |
| SSCDL-2600 | 2600 | 5 | 50 | 127 | 62 | 60 | 181 | 210 | 240 | 10.2 |
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
(Editor ：longhaihoist)
