Aluminum Electric Wire Rope Hoist in Japan Style
 |
Capacity:1 ton |
| Lifting Hight：6 m | |
| Brand:LONGSHENG® | |
| Warranty: 12 months |
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Aluminum Electric Wire Rope Hoist in Japan Style - LHJ
Produced as Japan's advanced high-precision technology, the structure is more scientific and rational, noiseless and compact, long life, and increasing the security and easy maintenance design,more reliable and safe to use.
Produced as Japan's advanced high-precision technology, the structure is more scientific and rational, noiseless and compact, long life, and increasing the security and easy maintenance design,more reliable and safe to use.

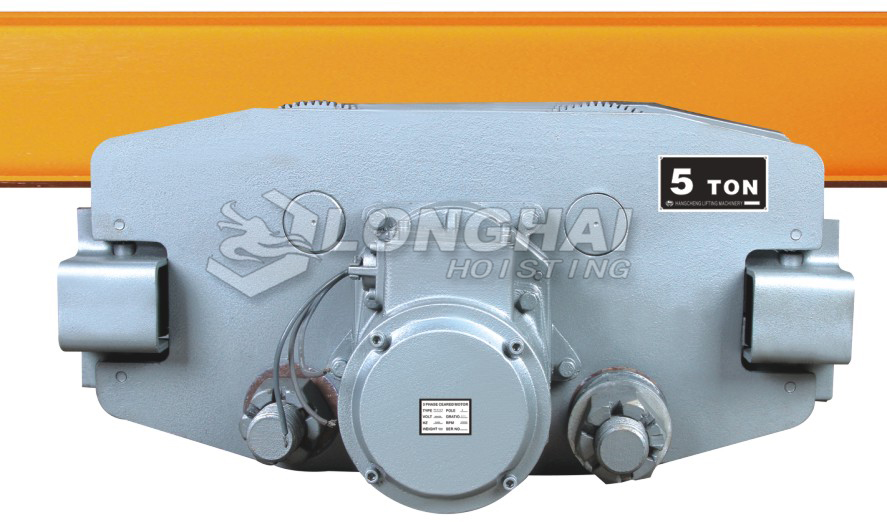

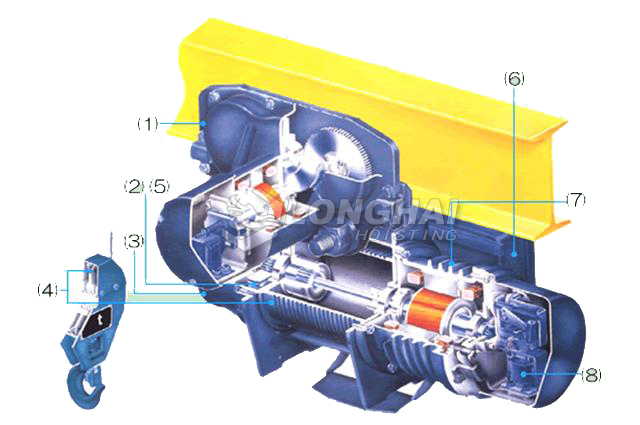

| 1, Electric Trolley | 2, Gear Unit | 3, Auxiliary Braking Device | 4, Rollers and Pulleys |
| 5,Gear Inspection Window | 6, Control Box | 7, Motor Unit | 8, Brake Unit |
Features:
Easy to assemble and disassemble, repair and maintenance is simple.
◆ High reliability braking system
1, Equiped a brake with automatic adjustment device, the brake is automatically adjusted in proportion to the amount of lining wear;
2, the Main Brake and Auxiliary Brake work together.
◆ Motor self-protection device
1, lifting motor designed with thermal protection device, automatic induction the heat of the motor coils and the working system to prevent damage because of the motor overheating.
◆ Effective maintenance
1, Counter design: Effective memory of the start time, easy to check the service life of wearing parts;
2, Gear Inspection Window: check gear and lubrication easily;
3, Punch mark: display hooks check reference point.
4, Easy to check the wire rope.
 |
 |
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ |
| Model | Capacity |
Lifting Speed |
Lifting Height |
Spec.of Load Chain |
Lifting Motor Power |
Lifting Motor Frequency |
Power supply |
| (t) | (m/min) | (m) | (фmm*m) | (Kw) | （Hz） | (V) | |
| LHJ1 | 1T | 11 | 6 | Φ8 7×19-B | 3 | 50 | 380 |
| Phase |
Working Level |
Insulation Class |
Protection Class |
Travering Motor Power |
Travering Motor Frequency |
Minimum Turning Radius |
I-Beam(mm) | NW |
| (Kw) | （Hz） | (Kg) | ||||||
| 3 | M3 | F | IP44 | 0.4 | 50 | 1.5 | 16-28b | 135 |
