Low Hydraulic Toe Jack -LH14

Low Hydraulic Toe Jack Capacity:5-25 ton
Brand:LONGSHENG®
Warranty: 24 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Low Hydraulic Toe Jack -LH14

1,Anti-overload device,absolutely safe.

2,This model series of low-claw jack cylinder can be rotated 360 degrees, more flexible,

    more suitable for the occasion.

3,The handle can turn direction,and very convinient to adjust the direction.

4,Compliance with the ASME B30.1 of U.S.A and CE of European.

5,There is wheels on the LH1425.

Details

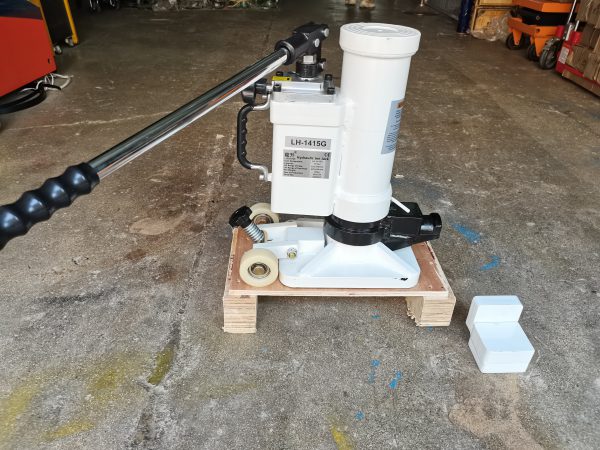

Head Close-up of Low Hydraulic Toe Jack Bottom Close-up of Low Hydraulic Toe Jack wheels on the LH1425 Low Hydraulic Toe Jack
Head Close-up of Low Hydraulic Toe Jack Bottom Close-up of Low Hydraulic Toe Jack  Wheels on the LH1425 Low Hydraulic Toe Jack

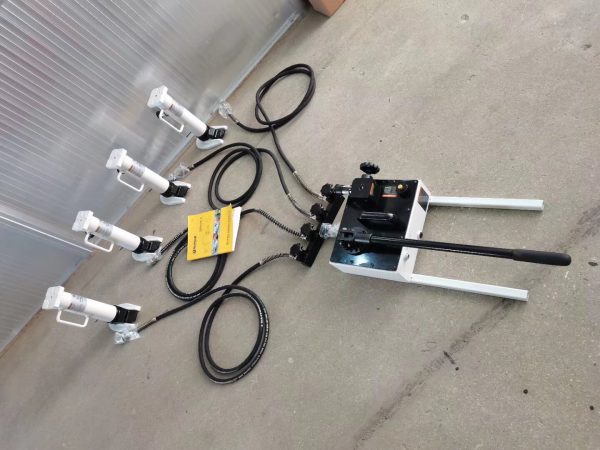

Synchronous low hydraulic claw jack

Synchronous low hydraulic claw jack

The picture shows a manual pump. It can also be changed to an electric pump.Electric pumps can be divided into general synchronous ones and precision synchronous ones

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Model Capacity
(T)
Minimum Height
of the Claw
(mm)
Max Height
of the Claw
(mm)
Minimum Height
of the Top
(mm)
Max Height of the Top
(mm)
Base Size
(mm)
Packing Size
(mm)
NW
(KG)
LH1405 5 25 230 368 573 203*140 360*180*390 21
LH1410 10 30 260 420 650 190*170 380*210*430 32
LH1425 25 56 273 505 720 337*210 530*350*610 105
