Heavy Track Hydraulic Skidding System -LHT

Heavy Pushing Hydraulic Cylinder System By Railway Capacity:158-400 ton
Brand:LONGSHENG®
Warranty: 12 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Heavy Track Hydraulic Skidding System-LHT

The Heavy Track Hydraulic Skidding System (Heavy Pushing Hydraulic Cylinder System By Railway) includes two parts:the Clamping
Pliers and Cylinder.It is a new kind of moving and position heavy objects in short distance.

It has a large carrying capacity, good stability, continuous movement, etc.So can substitute
the traditional sleepers and roll bar.

However,it is Necessary to use Railway,the railway should be 38kg/m or 43 kg/m or 50 kg/m.
If no,then it can not work.It can save labor, money and is of Safety.

The stroke speed of LHT is about 140mm/min.


The detailed parts of Heavy Track Hydraulic Skidding System including:

Clamping Pliers:2 sets
Skidding Cylinder:2 sets
High Pressure Electric Pump Station:2 sets
High Pressure Hose:3m*4 pieces + 6m*4 pieces
Initiative Slipper:2 sets
Passive slipper:2 sets

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Clamping Pliers Parameters
Model Working Pressure (MPa)  Clamping Force(KN) Clamping Stroke(mm) Oil Tank(L) Oil Demand(L) NW(KG)
LHT16-600 50.4 775 35 0.27 0.54 67
LHT30-600 62.4 1960 35 0.52 1.1 137

Cylinder Parameters
Model Working Pressure (MPa)  Rated Rhrust(KN) Thrust Stroke(mm) Oil Tank(L) Oil Demand(L) NW(KG)
LHT16-600 50.4 157 600 0.92 1.87 50
LHT30-600 58.5 294 600 1.34 3.02 69

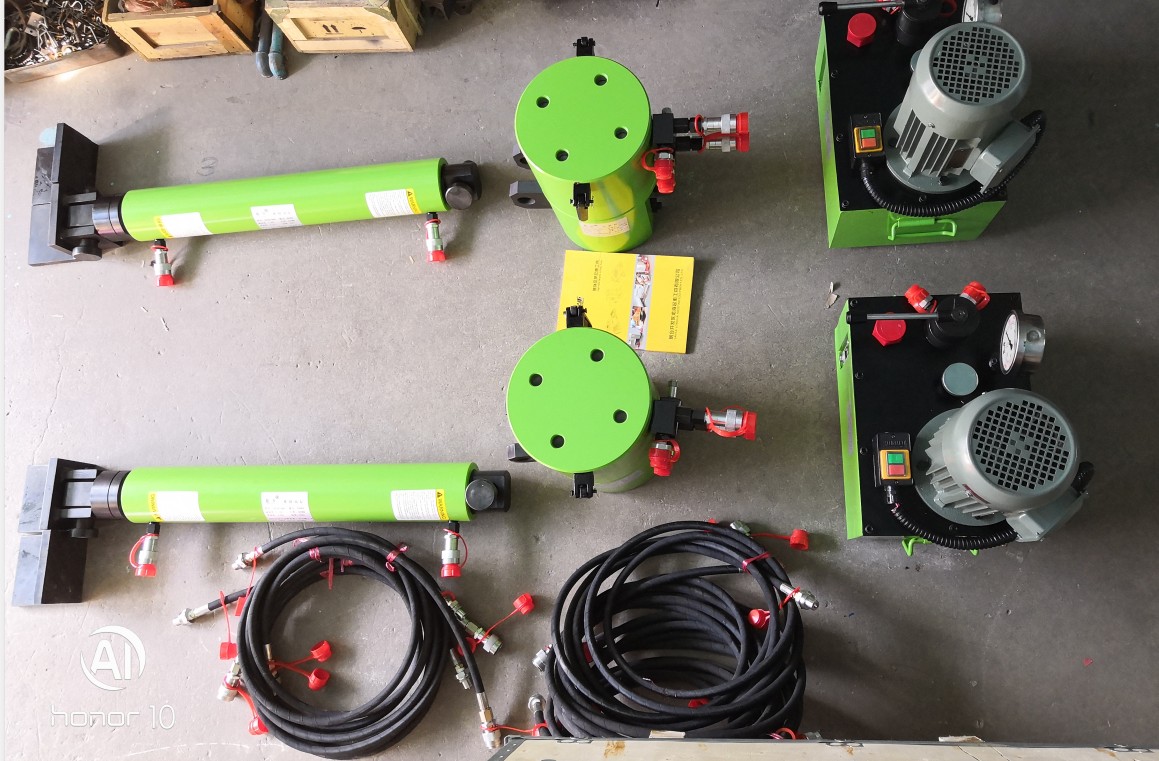

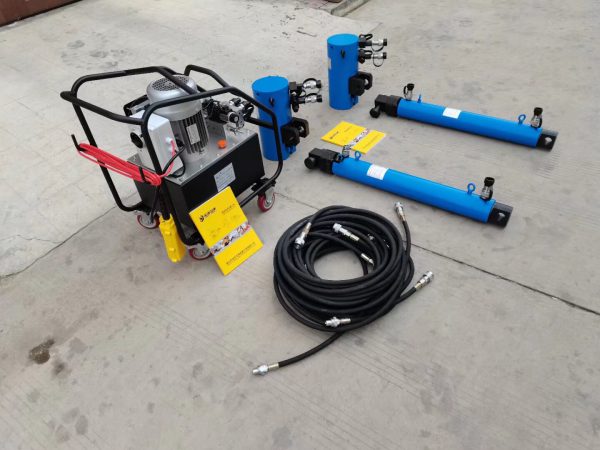

Our LHT Heavy Track Hydraulic Skidding System are working:

LHT Heavy Pushing Hydraulic Cylinder System By Railway are working Heavy Pushing Hydraulic Cylinder System By Railway are working
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
