With Wider Rigid-Pad Top

Machine Skates with Wider Rigid-Pad Top Max Load:0.75-50 ton
Brand:LONGSHENG®
Warranty: 12 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

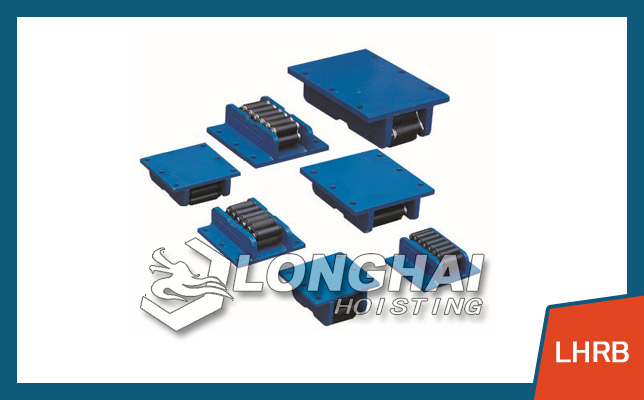

Machine Skates with Wider Rigid-Pad Top-LHRB

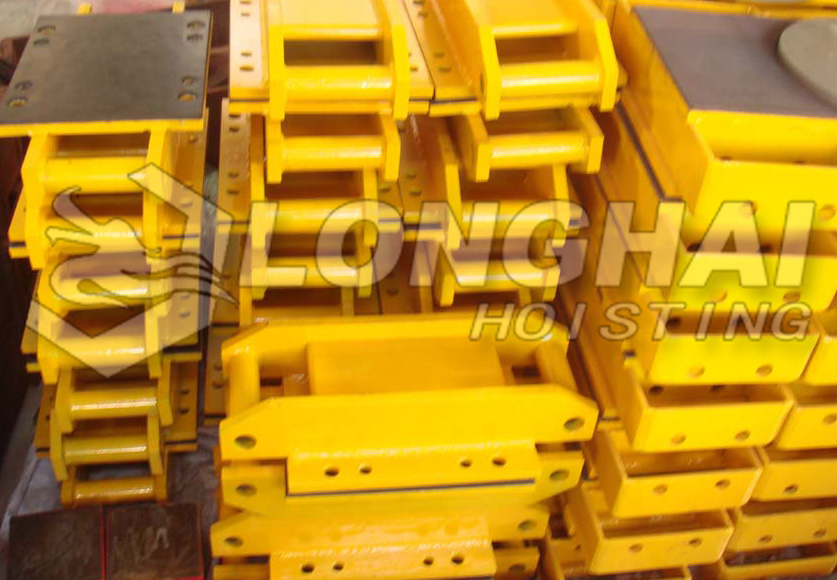

Frame of Machine Skates with Wider Rigid-Pad Top
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Model Max Load
(T)		 Wheel Diameter*Length
(mm)		 Wheel Qty
(pcs)		    Trolley Parameters  (mm)                         L                     W                       H NW
(KG)
LHRB-1 0.75 17*51 16 165 178 79 5
LHRB-2 2.5 24*62 12 165 178 92 10
LHRB-5 5 24*62 13 203 203 79 10
LHRB-8 8 24*84 13 209 203 79 11
LHRB-15 15 30*70 14 270 254 95 21
LHRB-20 20 30*102 14 270 254 95 22
LHRB-50 50 41*89 20 625 300 140 67
