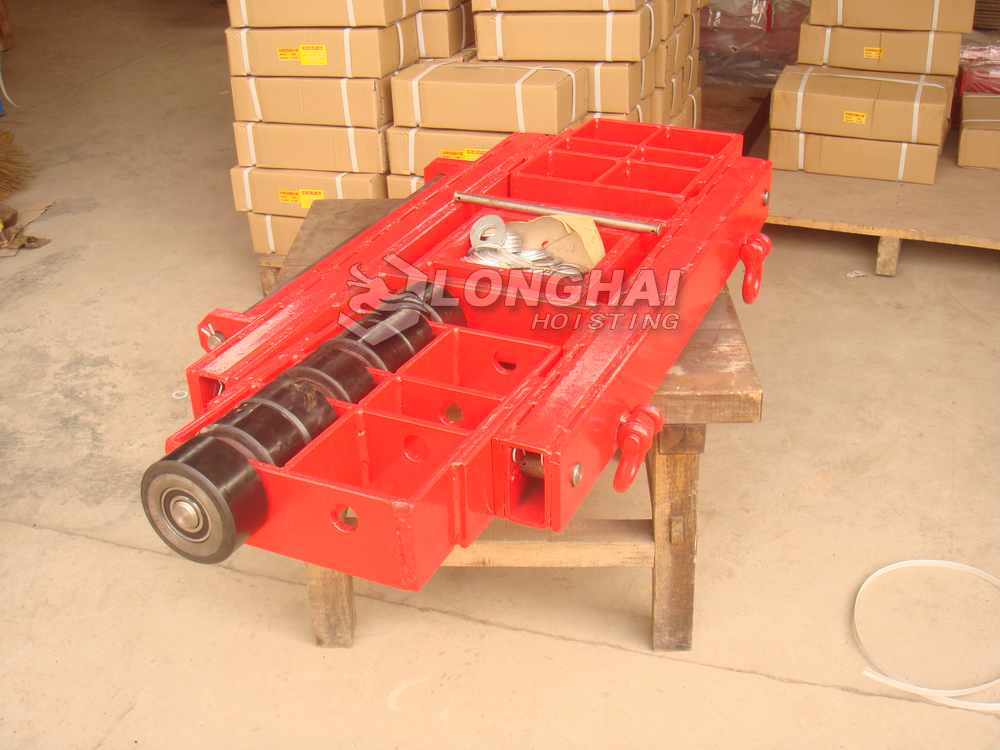

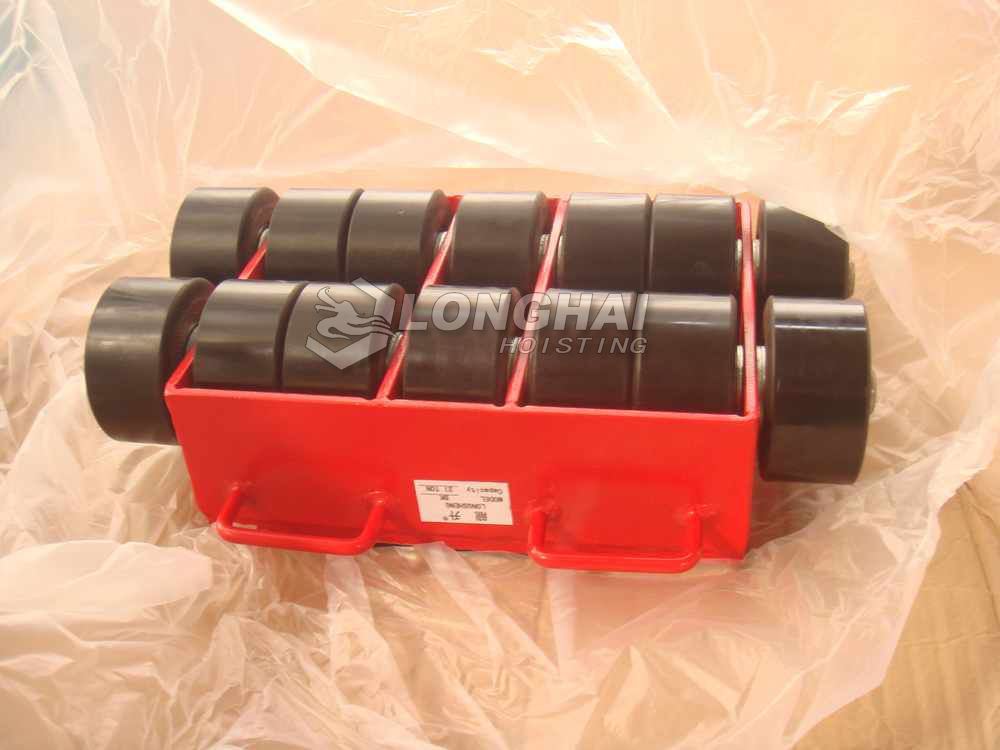

Steerable Machine Skates-AKBK

	Max Load:12-84 ton
	Brand:LONGSHENG®
	Warranty: 12 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Steerable Machine Skates of Series Kits & Sets-AKBK

The AKBK Steerable Machine Skates & Load Moving Skates (also can be called Cargo Trolley,Machinery Movers,Machine Dolly,Load Moving Skates,Moving Rollers,Machine Roller)includes AK and BK two parts.

The AK with the handle can turn direction,while the BK part with two small trolleys can not turn direction.

The AKBK Steerable Machine Skates is a kind of heavy-duty combined type Machine Skates.

Steerable Machine Skates of Series Kits & Sets-AKBK

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Model	Max Load (T)	Common Load (T)	Wheel Qty (pcs)	Measurement LWH(mm)	Loading Plate (mm)	Wheel Size (mm)	Wheel Material
AK6	12	8	4	330×300×145	Ф150	Ф115×60	PU rubber
BK3			2*2	290×95×145	240×80
AK12	24	16	8	530×540×145	Ф200	Ф115×60	PU rubber
BK6			4*2	290×160×145	240×140
AK18	36	24	12	660×540×145	Ф200	Ф115×60	PU rubber
BK9			6*2	290×230×145	240×140
AK24	48	32	16	850×550×145	Ф235	Ф115×60	PU rubber
BK12			8*2	290×290×145	240×140
AK30	60	40	20	975×550×145	Ф235	Ф115×60	PU rubber
BK15			10*2	385×290×145	240×235
AK36	72	48	24	1150×550×145	Ф235	Ф115×60	PU rubber
BK18			12*2	430×290×145	280×240
AK42	84	56	28	1275×550×145	Ф235	Ф115×60	PU rubber
BK21			14*2	500×290×145	280×240

The Similar Products:

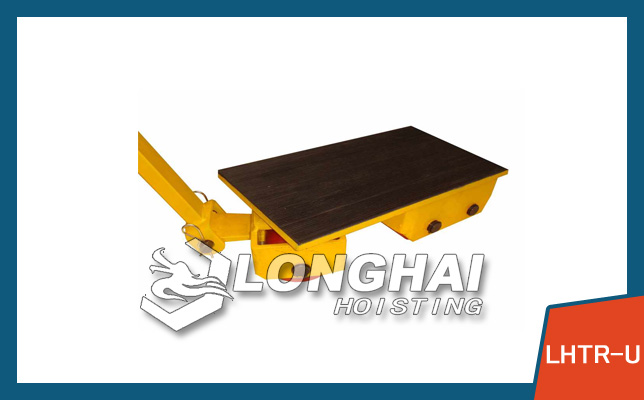

Heavy Duty Roller/Load Skates-LHGR-U	Steerable Machine Skates- LHTR-U	Machine Skates of Multifunctions-LHIR

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
