Electric Hydraulic Double Scissors Table Lifter
 |
Max Load:1-4 ton |
| Brand:LONGSHENG® | |
| Warranty: 12 months |
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

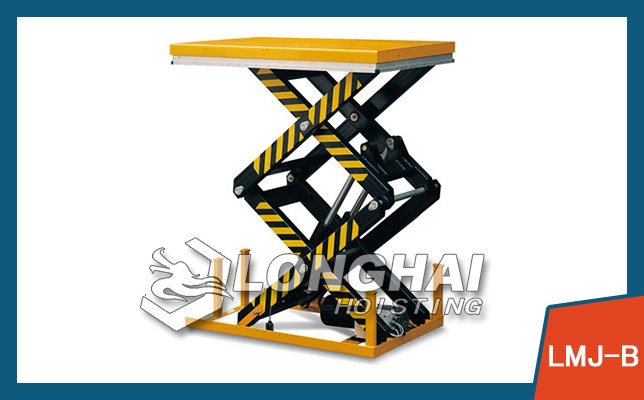

Electric Hydraulic Double Scissors Table Lifter – LMJ-B
Electric Hydraulic Double Scissors Table Lifter – LMJ-B
Meet EN1570 norm and ANSI/ASME safety standard.
Double Scissors Lift Platform,heavy duty design,high quality Pump Station imported for safer work.
Under the bottom of the table,there is a safe stop device,make sure to stop the decline when touch the barriers.
Using detachable Lifting Points for convenient transportation and installation.
In order to improve the safety, unique design with Overload Protection and Anti-shear Scissor (to prevent clip injury).
You may choose yellow or blue ones.
 |
 |
 |
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ |
| Model | Capacity | Min/Max Height | Platform Size(L×W) | Base Frame Size(L×W) | Lift Time | Power pack | NW |
| (kg) | (mm) | (mm) | (mm) | (s) | (kg) | ||
| LMJ-B1000 | 1000 | 305/1780 | 1300*820 | 1240*640 | 35-45 | 380V/50Hz | 210 |
| LMJ-B2000 | 2000 | 360/1780 | 1300*850 | 1220*785 | 35-45 | 295 | |
| LMJ-B4000 | 4000 | 400/2050 | 1700*1200 | 1600*900 | 55-65 | 520 |
The Similar Products:
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

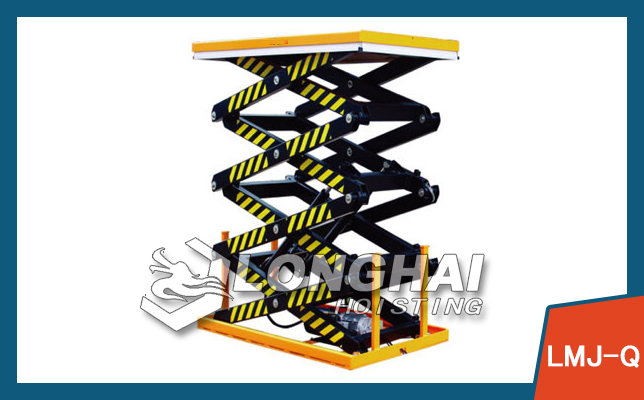

Previous：« Electric Hydraulic Scissor Lift Table Next：Electric Hydraulic Four Scissors Lifting Platform »
