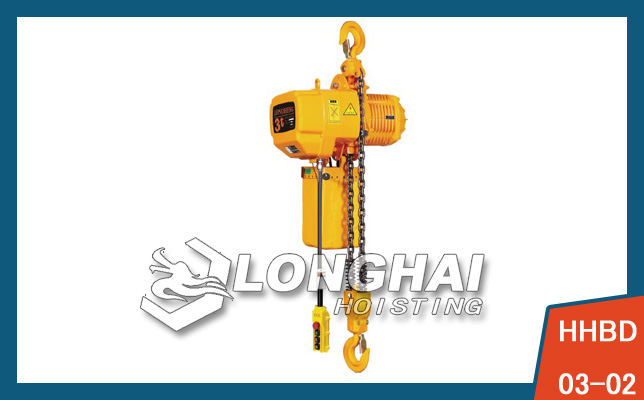

Electric Chain Hoist—3 Ton with Double Chain
 |
Capacity:3 ton |
| Lifting Hight：3/9 m | |
| Brand:LONGSHENG® | |
| Warranty: 12 months |
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
The function of Overload limit,Remote control,Double speed,Synchronous control is available
for HHBD Series Hoists,depending on Customized Demand.
for HHBD Series Hoists,depending on Customized Demand.
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ |
| Model |
Capacity (t) |
Lifting Hight (m) |
Lifting speed (m/min) |
No. of load chain | Spec.of load chain | I-Beam(mm) |
| Fixed Type | 3 | 3/9 | 3.4 | 2 | Φ10.0 | / |
| With Geared&Plain Trolley | 3 | 3/9 | 3.4 | 2 | Φ10.0 | 82-153 |
| With Electric Trolley | 3 | 3/9 | 4.4 | 2 | Φ10.0 | 100-178 |
| Lifting Motor | |||||
| Model |
Motor power (kw) |
Rotation speed (r/min) |
Phase |
Power supply (V) |
Frequency ( Hz) |
| Fixed Type | 3 | 1440 | 3 | 220-440 | 50/60 |
| With Geared&Plain Trolley | 3 | 1440 | 3 | 220-440 | 50/60 |
| With Electric Trolley | 3 | 1440 | 3 | 220-440 | 50/60 |
| Trolley Motor | ||||||
| Model |
Motor power (kw) |
Rotation speed (r/min) |
Trolley speed (m/min) |
Phase |
Power supply (V) |
Frequency ( Hz) |
| With Electric Trolley | 0.75 | 1440 | 11/21 | 3 | 220-440 | 50/60 |
Warranty: 6 months of electrical part, 12 months of mechanical part
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
