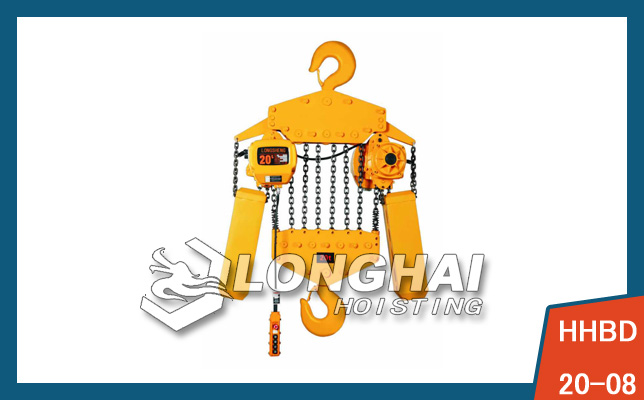

Electric Chain Hoist—20 Ton
 |
Capacity:20 ton |
| Lifting Hight：3/9 m | |
| Brand:LONGSHENG® | |
| Warranty: 12 months |
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
The function of Overload limit,Remote control,Double speed,Synchronous control is available
for HHBD Series Hoists,depending on Customized Demand.
for HHBD Series Hoists,depending on Customized Demand.
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ |
| Model |
Capacity (t) |
Lifting Hight (m) |
Lifting speed (m/min) |
No. of load chain | Spec.of load chain | I-Beam(mm) |
| Fixed Type | 20 | 3/9 | 1.4 | 8 | Φ11.2 | 150-220 |
| Lifting Motor | |||||
| Model |
Motor power (kw) |
Rotation speed (r/min) |
Phase |
Power supply (V) |
Frequency ( Hz) |
| Fixed Type | 3.0*2 | 1440 | 3 | 220-440 | 50/60 |
Warranty: 6 months of electrical part, 12 months of mechanical part
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
