Horizontal/Vertical Bottle Jack -QW

Horizontal/Vertical Bottle Jack Capacity:2-50 ton
Brand:LONGSHENG®
Warranty: 3 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

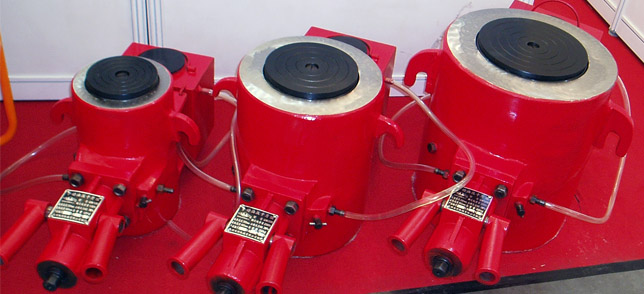

Horizontal/Vertical Bottle Jack -QW

Horizontal or Vertical,both available

Horizontal/Vertical Bottle Jack

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Model QW100 QW200 QW320 QW500
Capacity(T) 100 200 320 500
Lifting Height (mm) 200 200 200 200
Body Size (mm) 610×410×510 710×530×590 730×610×640 880×880×580
Body Height (mm) 360 400 450 470
PN    Mpa2 63.7 69.2 69.3 60.9
Base Diameter (mm) 222 314 394 450
Lifting Process 4.5 2.5 1.6 0.9
Handle length (mm) 950 950 950 950
Handle operating force(kgf) 35×2 35×2 35×2 35×2
Oil(L) 3.5 7 10 17
NW(KG) 120 250 435 570

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
