Air/Hydraulic Jacks

Air/Hydraulic Jacks Capacity:2-50 ton
Brand:LONGSHENG®
Warranty: 24 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Air/Hydraulic Jacks -LHQAir/Hydraulic Jacks using the compressed air as power, composed with liquid booster and

telescopic hydraulic cylinder.It has advantages of compact design, small size, light weight,
easy to operate, saving time and effort and is widely used in cars, tractors and other vehicle
repair industry.
1.Air/Hydraulic Jacks can use air as the driving force(much quicker, saving manpower).
2.In the absence of gas supply situation,our jacks also can be used like hydraulic jack.

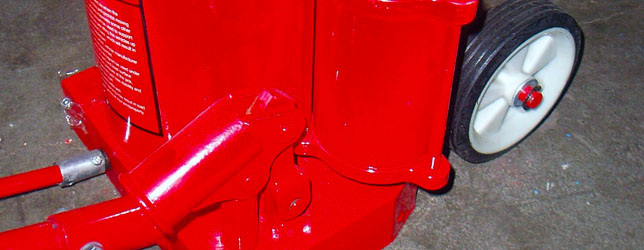

3,There is wheels on the LHQ50002.
Air/Hydraulic Jacks wheels

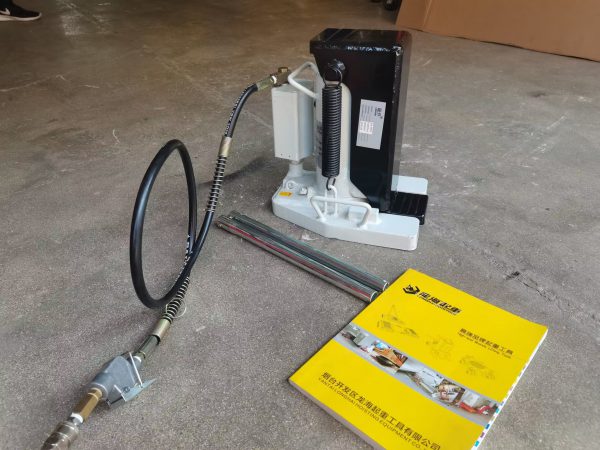

air-powered-lifting-jacks
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Model Capacity
(T)
Minimum Height
(mm)
Max Height
(mm)
Adjusting Height
(mm)
Stroke
(mm)
Packing Size
(mm)
NW
(KG)
LHQ12002 12 265 510 80 165 280*275*160 13.5
LHQ20002 20 265 510 80 165 295*285*190 17.7
LHQ30002 30 280 470 / 190 300*300*290 25
LHQ35002 35 264 414 / 150 270*230*300 31
LHQ50002 50 307 485 / 178 330*230*355 39.5

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
