Folding Hydraulic Crane -LLH

Folding Hydraulic Crane Capacity:0.35-2 ton
Brand:LONGSHENG®
Warranty: 12 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Folding Hydraulic Crane-LLH

1, Unique folding design to save space,providing great convenience.

2,With a two-speed manual pump provides fast lifting,precise control and steady decline is
available.

3,Flexible position is available with the help of rolling and steering wheel  .

4,Need only one person to operate, saving save time and effort,improving efficiency.

5,Boom angle could be adjusted, (P1, P2, P3)


6,Heavy-duty casters equiped with foot brakes.

7,Conforms to CE safety standard.

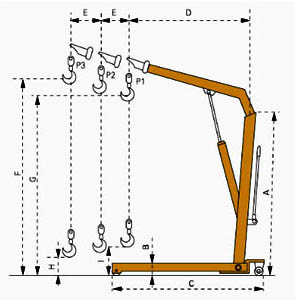

Folding Hydraulic Crane size

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Model   LLH-A05 LLH-A10 LLH-A20
Capacity at Position P1(kg) 500 1000 2000
P2(kg) 425 800 1700
P3(kg) 350 700 1500
Dimensions A(mm) 1410 1675 1690
B(mm) 165 90 205
C(mm) 1510 1630 1900
D(mm) 895 1230 1290
E(mm) 102 150 150
F(mm) 2120 2445 2705
G(mm) 1960 2330 2505
H(mm) 150
I(mm) 340 245 230
Overall Width (mm) 970 1120 1165
Net Weight (kg) 75 115 165
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
