Single-acting Hydraulic Jack

Single-acting Hydraulic Jack Rated Lifting Force:10-100 ton
Brand:LONGSHENG®
Warranty: 12 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Single-acting Hydraulic Jack — LSSA

1,Single-acting Hydraulic Jack by 105% safe load design (the capacity of other manufacturers‘ products are generally safe load by 80%,which means if the  marked capacity is 100 ton,then the workable capacity is only 80 tons)

2,The cylinder part of our Single-acting Hydraulic Jack  is of forging production process, high strength, long service life.

3,Spring return feature, piston automatic relief without load on.

4,In order to extend the life of our Single-acting Hydraulic Jack, increasing dust-proof ring.

5,All seals of our Single-acting Hydraulic Jack are imported from Swedish SKF.

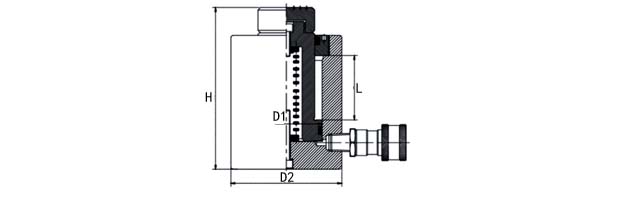

Single-acting Hydraulic Jack
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Model Capacity Stroke
L
Body height
H
Outer diameter
Y(X)
Hydraulic oil capacity Cylinder rod diameter
D1
NW
(Ton) (mm) (mm) (mm) cm 3 (mm) (Kg)
LSSA10-50 10 50 110 76 80 35 3.9
LSSA10-100 100 165 160 5.9
LSSA10-150 150 240 240 8.2
LSSA10-200 200 305 320 10.5
LSSA20-50 20 50 110 94 156 50 6
LSSA20-100 100 165 312 8.9
LSSA20-150 150 245 468 12.7
LSSA20-200 200 310 624 16.3
LSSA30-50 30 50 115 107 227 60 8.1
LSSA30-100 100 170 454 11.9
LSSA30-150 150 270 681 18.1
LSSA30-200 200 330 908 21.8
LSSA50-50 50 50 125 132 393 80 13.3
LSSA50-100 100 180 786 19.2
LSSA50-150 150 285 1179 27.9
LSSA50-200 200 340 1572 33.8
LSSA75-100 75 100 195 162 1168 100 31.4
LSSA75-150 150 280 1752 42.5
LSSA75-200 200 335 2336 51.4
LSSA100-100 100 100 195 175 1538 112 37
LSSA100-150 150 315 2307 57.5
LSSA100-200 200 365 3076 67
