High Pressure Electric Pump Station

High Pressure Electric Pump Station Brand:LONGSHENG®
Warranty: 12 months



~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
High Pressure Electric Pump Station-LSPH
High pressure electric pump station is high pressure, small, safe and high efficiency. For example, with the appropriate equipment and devices, can be carried forward, stretching, expansion, clamping, bending, lifting, pressing,fixed wiring, steel bar connection,prefabricated reinforced concrete pile,pile testing and other engineering operations.

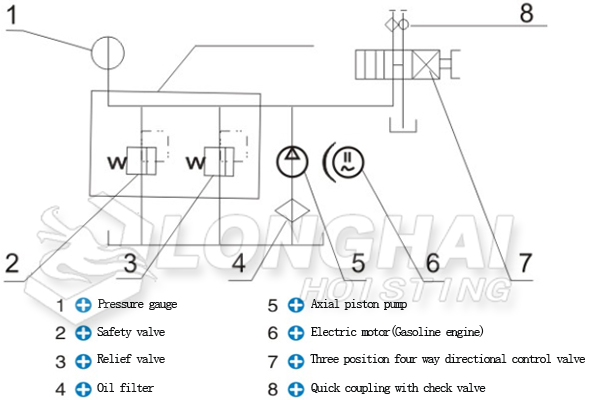

Pump station equipped with a safety valve (Note: 125Mpa pump station without safety valve), relief valve, three position four-way directional control valve, flexible and easy to use, safe and reliable.

High Pressure Electric Pump Station

High Pressure Electric Pump Station High Pressure Electric Pump Station

High Pressure Electric Pump Station

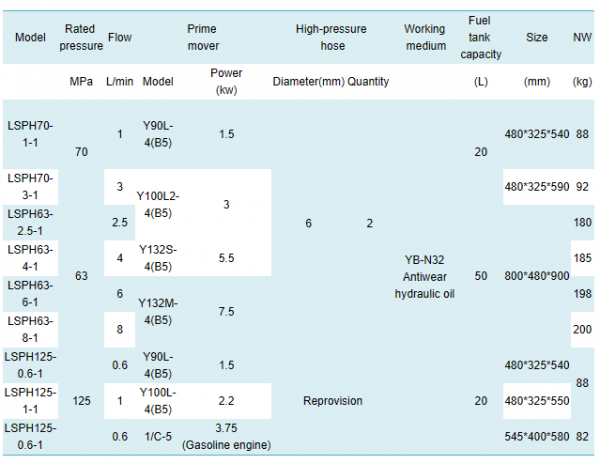

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~High Pressure Electric Pump Station-LSPH
Model Rated
pressure
Flow Prime
mover
High-pressure
hose
Working
medium
Fuel
tank
capacity
Size NW
MPa L/min Model Power
(kw)
Diameter(mm) Quantity (L) (mm) (kg)
LSPH70-1-1 70 1 Y90L-4(B5) 1.5 6 2 YB-N32
Antiwear
hydraulic oil
20 480*325*540 88
LSPH70-3-1 3 Y100L2-4(B5) 3 480*325*590 92
LSPH63-2.5-1 63 2.5 50 800*480*900 180
LSPH63-4-1 4 Y132S-4(B5) 5.5 185
LSPH63-6-1 6 Y132M-4(B5) 7.5 198
LSPH63-8-1 8 200
LSPH125-0.6-1 125 0.6 Y90L-4(B5) 1.5 Reprovision 20 480*325*540 88
LSPH125-1-1 1 Y100L-4(B5) 2.2 480*325*550
LSPH125-0.6-1 0.6 1/C-5 3.75
(Gasoline engine)
545*400*580 82
