Electric Hydraulic Scissor Lift Table
  |
Max Load:1-4 ton |
| Brand:LONGSHENG® | |
| Warranty: 12 months |
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

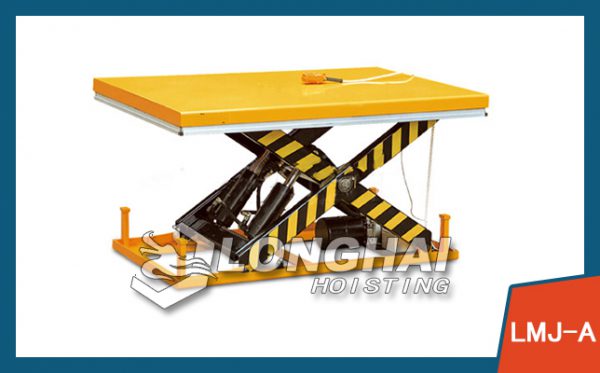

Electric Hydraulic Scissor Lift Table – LMJ-A
Electric Hydraulic Scissor Lift Table – LMJ-A
Using heavy duty design, high quality imported pump station, lifting and carrying goods more safe and reliable;
In order to improve the safety, unique design with Anti-shear Scissor (to prevent clip injury), overload protection device (to prevent the overload).
Under the bottom of the table,there is a safe stop device,make sure to stop the decline when touch the barriers.Meanwhile,equipped with safety wedge block for easier maintenance.
You may choose yellow or blue ones.
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ |
| Model | Capacity | Min/Max Height | Platform Size(L×W) | Base Frame Size(L×W) | Lift Time | Power pack | NW |
| (kg) | (mm) | (mm) | (mm) | (s) | (kg) | ||
| LMJ-A1001 | 1000 | 205/990 | 1300×820 | 1240×640 | 20-25 | 380V/50Hz | 160 |
| LMJ-A1001K | 1000 | 240/1300 | 1700×1500 | 1580×1320 | 30-40 | 380V/50Hz | 365 |
| LMJ-A1002 | 1000 | 205/990 | 1600×1000 | 1240×640 | 20-25 | 380V/50Hz | 186 |
| LMJ-A1003 | 1000 | 240/1300 | 1700×850 | 1580×640 | 30-35 | 380V/50Hz | 200 |
| LMJ-A1004 | 1000 | 240/1300 | 1700×1000 | 1580×640 | 30-35 | 380V/50Hz | 210 |
| LMJ-A1005 | 1000 | 240/1300 | 2000×850 | 1580×640 | 30-35 | 380V/50Hz | 212 |
| LMJ-A1006 | 1000 | 240/1300 | 2000×1000 | 1580×640 | 30-35 | 380V/50Hz | 223 |
| LMJ-A2001 | 2000 | 230/1000 | 1300×850 | 1220×785 | 20-25 | 380V/50Hz | 235 |
| LMJ-A2001K | 2000 | 250/1400 | 1700×1500 | 1600×1435 | 25-35 | 380V/50Hz | 160 |
| LMJ-A2002 | 2000 | 230/1000 | 1600×1000 | 1220×785 | 20-25 | 380V/50Hz | 268 |
| LMJ-A2003 | 2000 | 250/1300 | 1700×850 | 1600×785 | 25-35 | 380V/50Hz | 289 |
| LMJ-A2004 | 2000 | 250/1300 | 1700×1000 | 1600×785 | 25-35 | 380V/50Hz | 300 |
| LMJ-A2005 | 2000 | 250/1300 | 2000×850 | 1600×785 | 25-35 | 380V/50Hz | 300 |
| LMJ-A2006 | 2000 | 250/1300 | 2000×1000 | 1600×785 | 25-35 | 380V/50Hz | 315 |
| LMJ-A4001 | 4000 | 240/1050 | 1700×1200 | 1600×900 | 30-40 | 380V/50Hz | 375 |
| LMJ-A4001K | 4000 | 350/1300 | 1700×1500 | 1620×1400 | 35-40 | 380V/50Hz | 460 |
| LMJ-A4002 | 4000 | 240/1500 | 2000×1200 | 1600×900 | 30-40 | 380V/50Hz | 405 |
| LMJ-A4003 | 4000 | 300/1400 | 2000×1000 | 1980×900 | 30-40 | 380V/50Hz | 470 |
| LMJ-A4004 | 4000 | 300/1400 | 2000×1200 | 1980×900 | 35-40 | 380V/50Hz | 490 |
| LMJ-A4005 | 4000 | 300/1400 | 2200×1000 | 1980×900 | 35-40 | 380V/50Hz | 480 |
| LMJ-A4006 | 4000 | 300/1400 | 2200×1200 | 1980×900 | 35-40 | 380V/50Hz | 505 |
