Double-acting Hydraulic Jack

Double-acting Hydraulic Jack Rated Lifting Force:50-1000 ton
Brand:LONGSHENG®
Warranty: 12 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

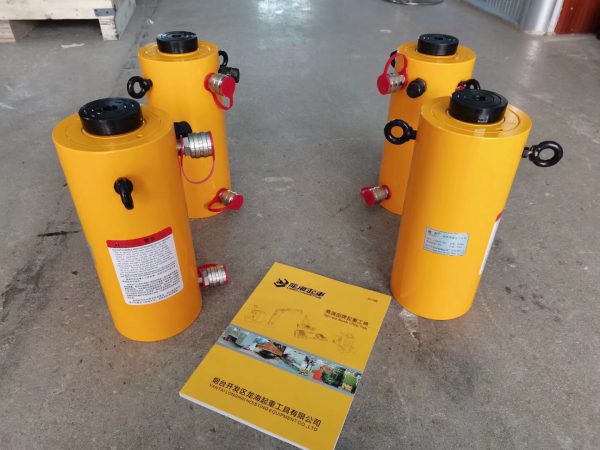

Double-acting Hydraulic Jack – LSJF
1,Double-acting jack,hydraulic return;
2,Built-in Pressure Relief Valve to prevent sudden overpressure;
3,Special design can withstand partial load by 5% of rated load capacity;
4,Interchangeable hardened grooved saddles are standard;
5,Paint surface to make corrosion-resistant;
6,Equipped with Dust-proof Ring reduces contamination,extending life, all models have Quick Connectors and Dust Caps;
7,Hydraulic self-locking, suitable for field work and long-time lifting;
8,Partial Load Indenter and special purposes can be customized.

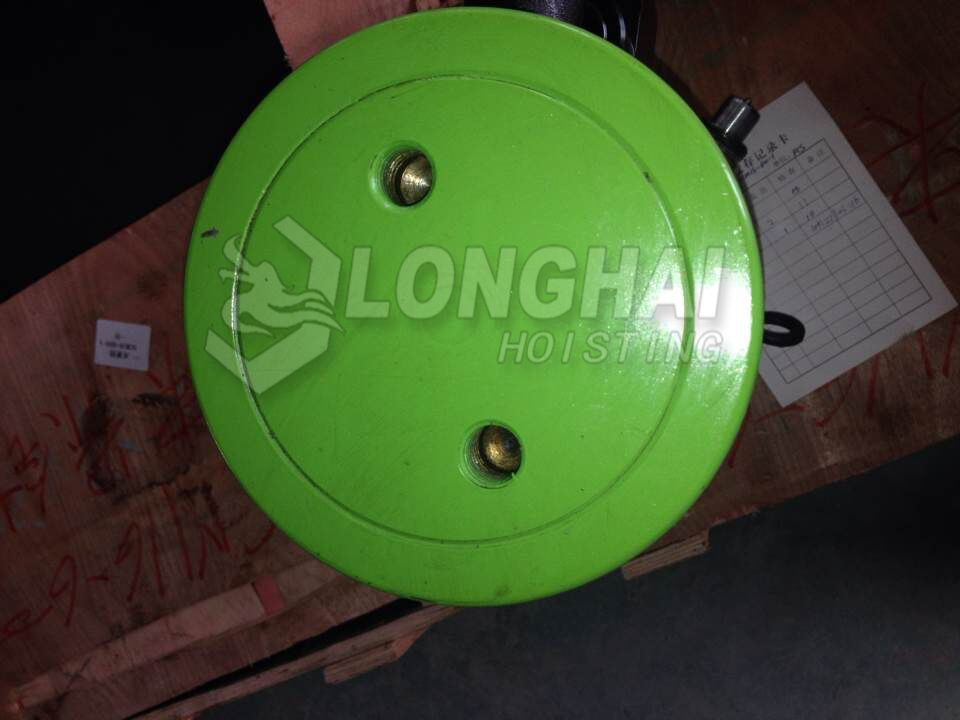

Double-acting Hydraulic Jack  Mounting Hole

Double-acting Hydraulic Jack – LSJF

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Model Capacity Working
pressure
Stroke
L2
Body
height
L1
Inner
Diameter
Outer
diameter
Cylinder
rod
diameter
D1
Mounting
holes
Center
distance
Mounting
holes
Rings
screw
Mounting
Holes
NW
(Ton) MPa (mm) (mm) D2(mm) D(mm) (mm) D3(mm) E (Kg)
LSJF50-100 50 63.7 100 238 100 140 70 70 4-M16 2-M8 26
LSJF50-150 150 288 31
LSJF50-200 200 338 35
LSJF100-100 100 65 100 266 140 180 100 100 4-M20 2-M10 49
LSJF100-150 150 316 56
LSJF100-200 200 366 63
LSJF100-250 250 416 70
LSJF200-100 200 637 100 296 200 250 150 160 4-M24 2-M20 109
LSJF200-150 150 346 121
LSJF200-200 200 396 132
LSJF200-250 250 446 143
LSJF320-150 320 63.9 150 377 250 315 180 220 4-M24 2-M24 200
LSJF320-200 200 427 220
LSJF500-150 500 62.3 150 425 320 385 250 280 4-M24 2-M24 360
LSJF500-200 200 475 394
LSJF630-150 630 62 150 486 360 450 280 300 4-M24 2-M24 588
LSJF630-200 200 536 634
LSJF800-150 800 63.7 150 527 400 550 320 380 4-M24 2-M24 870
LSJF800-200 200 577 944
LSJF1000-150 1000 63 150 604 450 600 360 400 4-M24 2-M24 1120
LSJF1000-250 200 654 1329
